How to batch make ITF-14 bar codes

Itf-14 barcode is a fixed 14-bit data, often used in the printing of box code labels, the first digit is called "packaging indicator", used to indicate the packaging level. The indicators 1-8 are for quantitative packaging and 9 is for variable packaging. When using barcode label software to make ITF14, it contains self-check function. If 13-bit data is input, the software will automatically generate the last bit check code data. If there is a complete 14 - bit data directly input can generate the bar code. The following Xiaobian will demonstrate how to batch generate ITF14 bar codes.

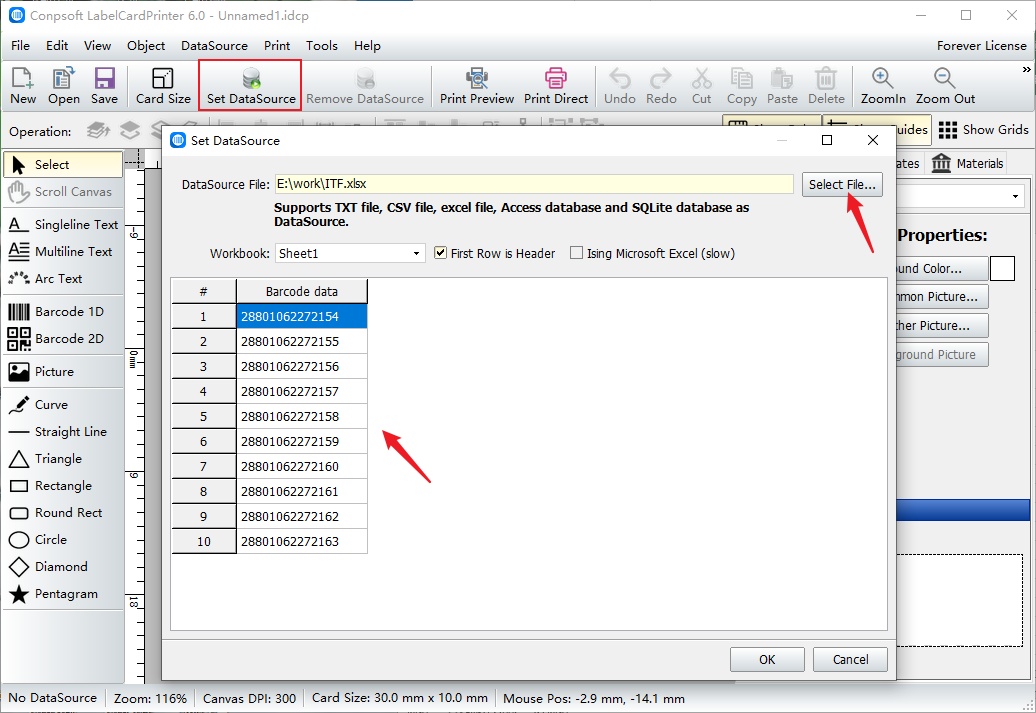

Open the barcode generation software, click New label, set the size of the label. The saved barcode data is imported into the software through the database Settings. Click "Set Data Source" above the software -- Select file -- Select the ITF-14 bar code document saved in the computer -- OK.

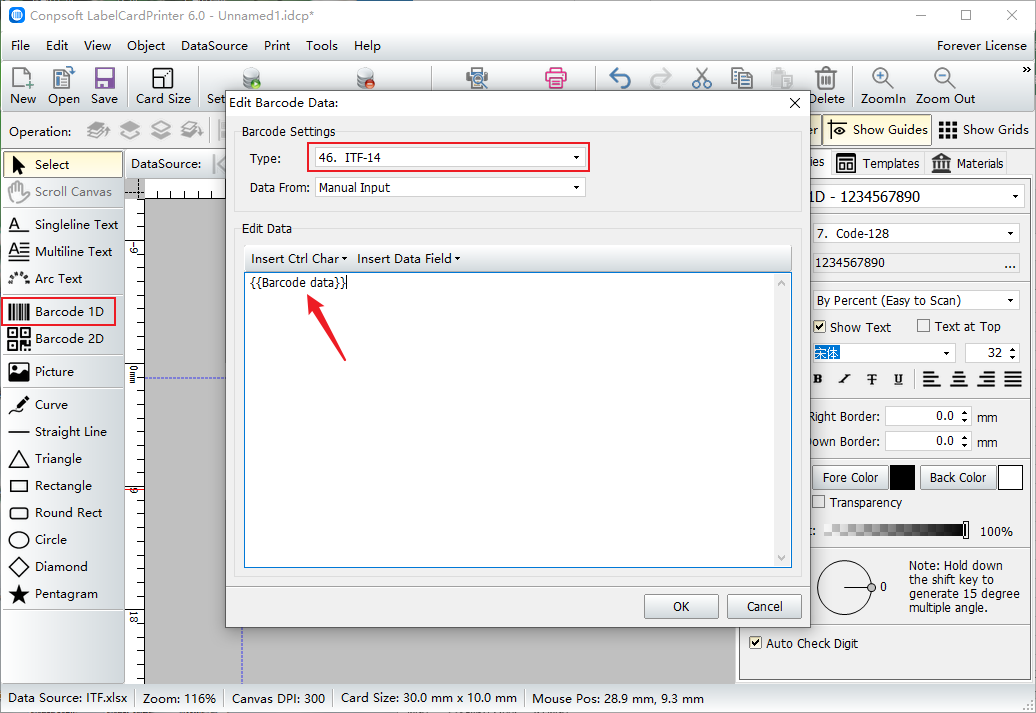

To draw the barcode, click the "Barcode" button in the left toolbar of the software, add a barcode on the label, select the barcode type as ITF-14 barcode in the popup editing interface, click the Insert Data Source field, and select barcode data.

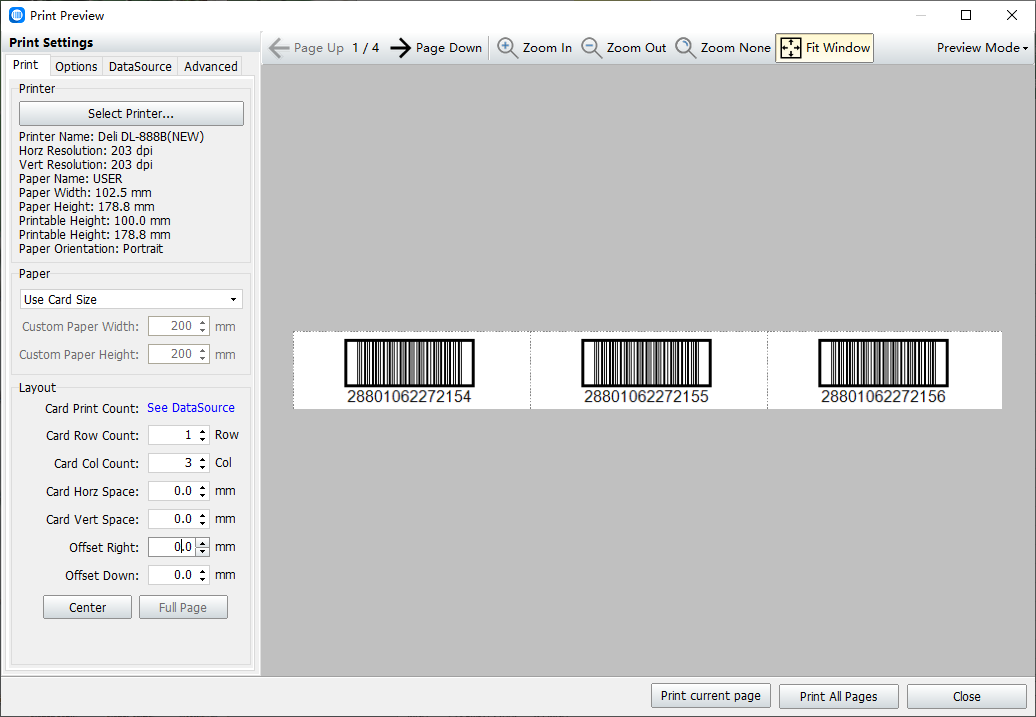

After the barcode is generated, click Print Preview to set the printer, paper, print quantity, etc.

The above is the procedure for batch making ITF-14 bar codes. The above is for testing, so the data is very few, the actual operation, the database data how many can generate how many bar codes.
