Fast batch generation of double-row label serial numbers

Many users will encounter the need to set double-row label paper when using barcode software to make labels. Of course, in addition to double-row labels, there are three rows and four rows of labels. The following Xiaobian will show you how to batch generate double-row serial number labels.

Open the barcode label printing software, create a blank label, and set the label size based on the actual label paper size. For example, the size of our label paper is 30*20mm, then the width and height of the label are as follows:

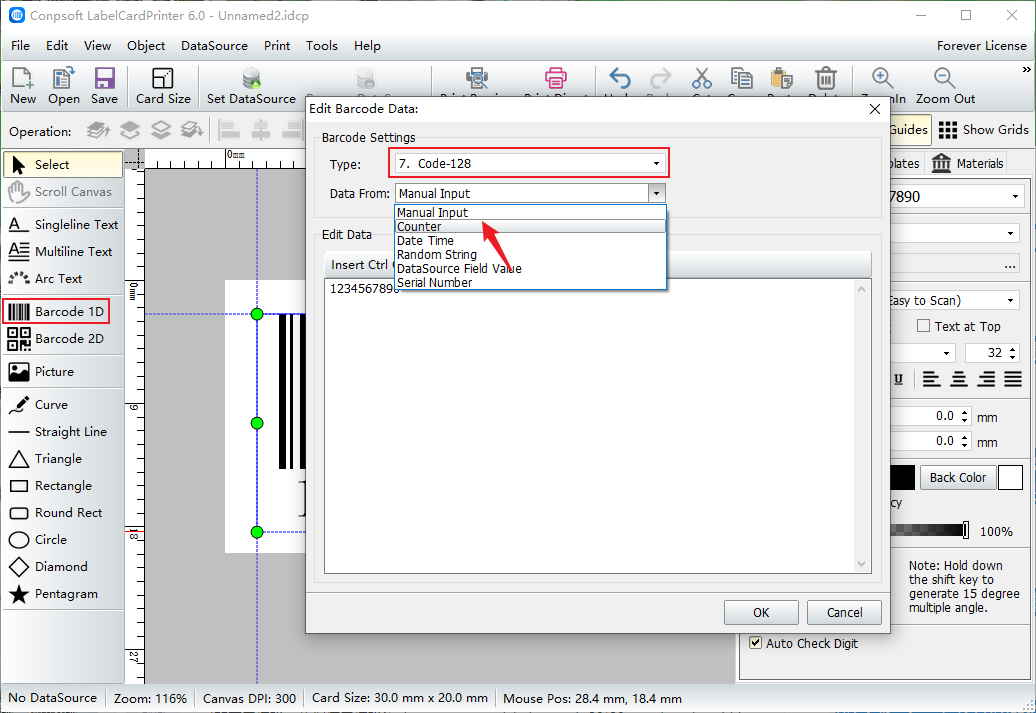

Click the icon "Barcode" in the toolbar on the left of the software and draw a barcode on the label. The barcode type can be selected according to your own needs. Code-128 is selected here. Select "Counter" for data source.

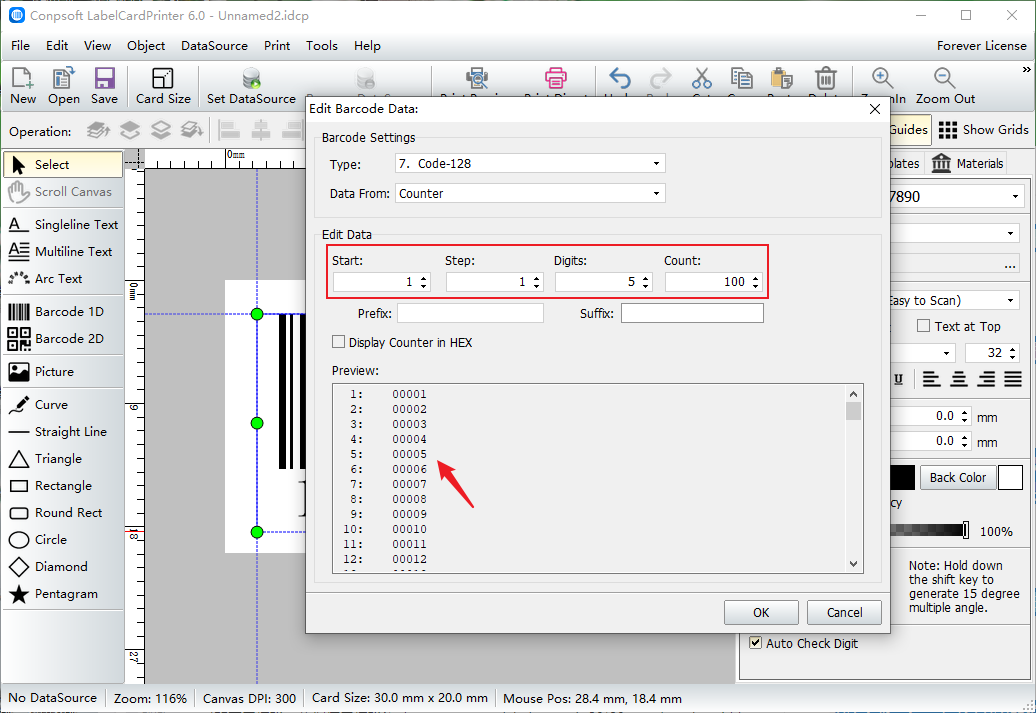

Set the corresponding data in the edit data, such as data start we set to 1, of course, can be any other character want to start. The counter step is set to 1, which means the increment of the counter each time. Set the number of data bits and total data amount as required. As shown in the picture below:

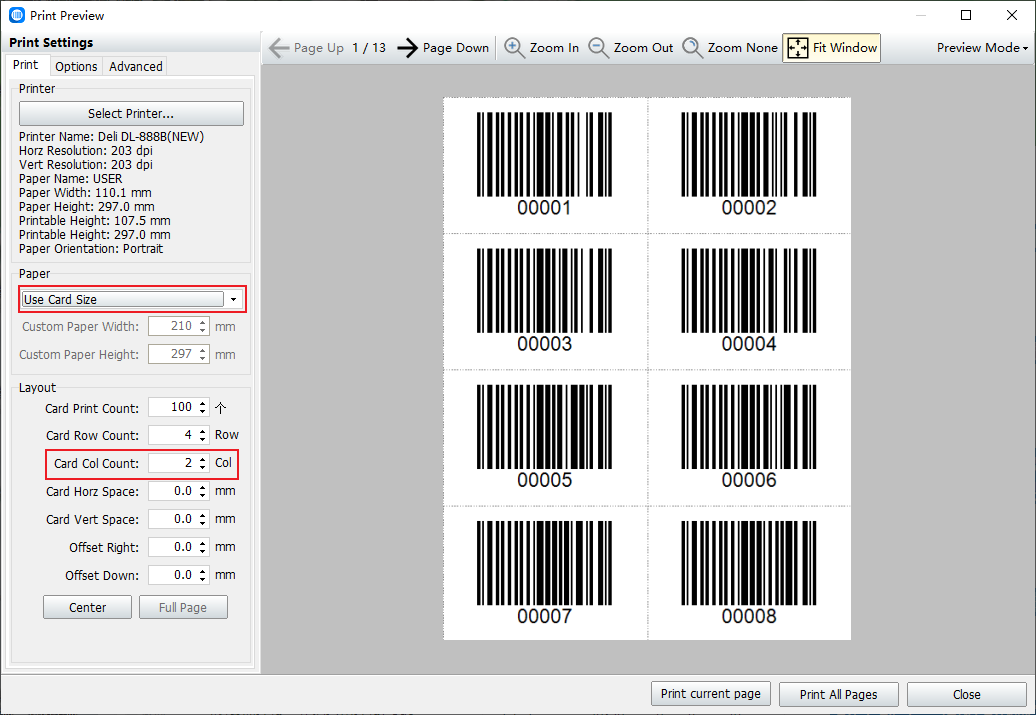

Click Print Preview and select "Use label size and row Count automatically" for paper. For typesetting, set the number of columns of the label to 2 so that the label is double-lined. You can see the effect in the preview screen.

Read the above introduction, I believe you have a certain understanding of the production of double row labels. Same operation, can also make three rows, four rows of labels.
