How to set vertical bar code in bar code software

2022-07-13 | 562 view

When we usually make bar code labels, bar codes are generally presented horizontally, but there are also some cases that need to be presented vertically when designing labels.

When we usually make bar code labels, bar codes are generally presented horizontally, but there are also some cases that need to be presented vertically when designing labels. How to make such a vertical bar code, the following describes the specific operation steps.

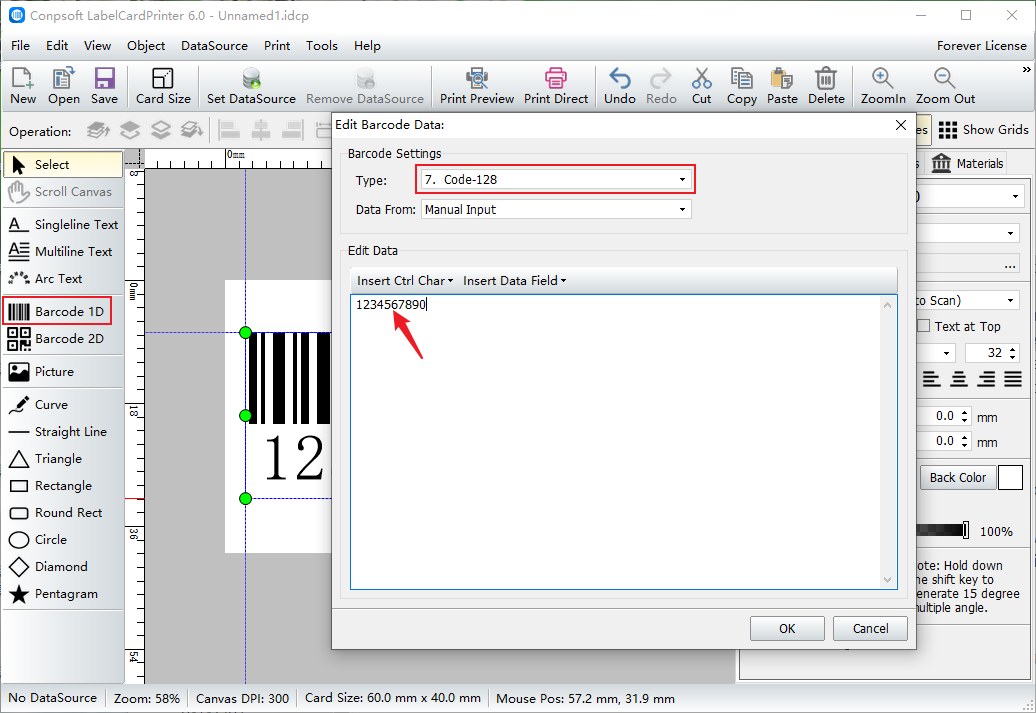

Open the magic bar code label printing software, set the label size. Click "Barcode 1D" button, draw a barcode on the label, select the barcode type in the pop-up interface, and input the barcode data.

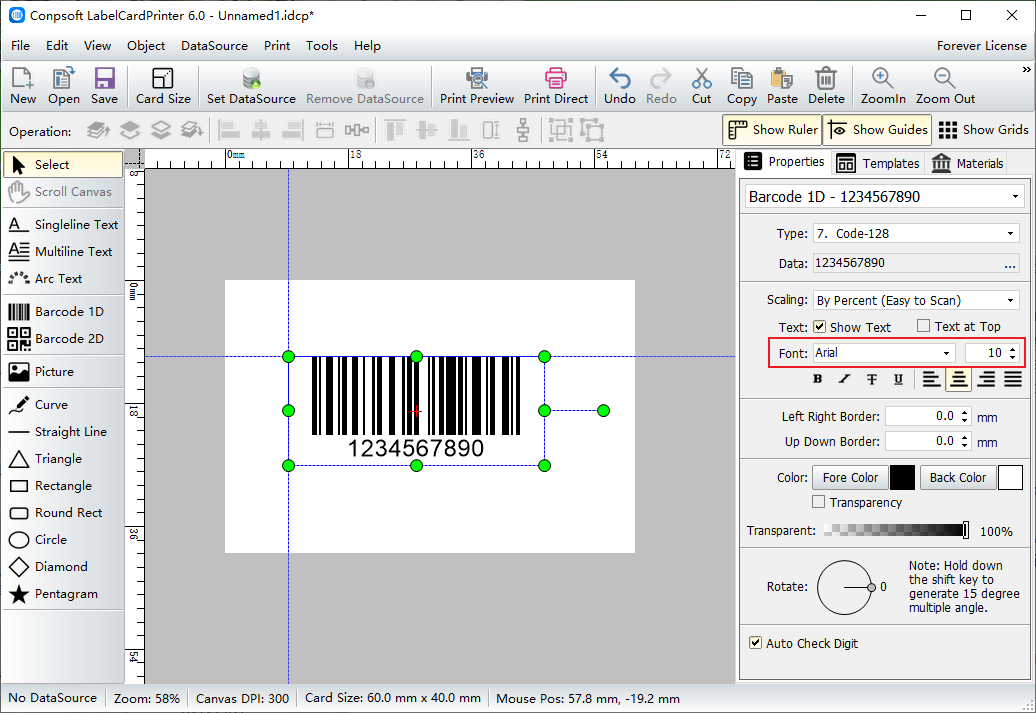

After the bar code is created, set the font and size of the bar code on the right of the software.

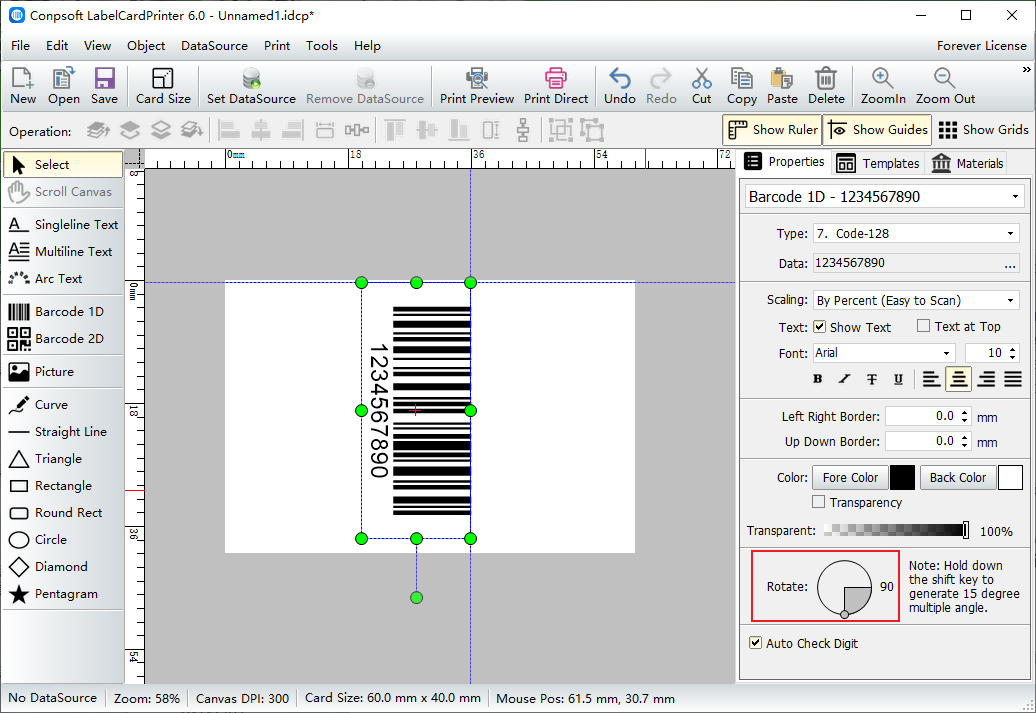

Select the bar code and set the rotation Angle to 90 degrees at the rotation Angle. Drag while holding down the Shift key to generate a multiple Angle of 15 degrees.

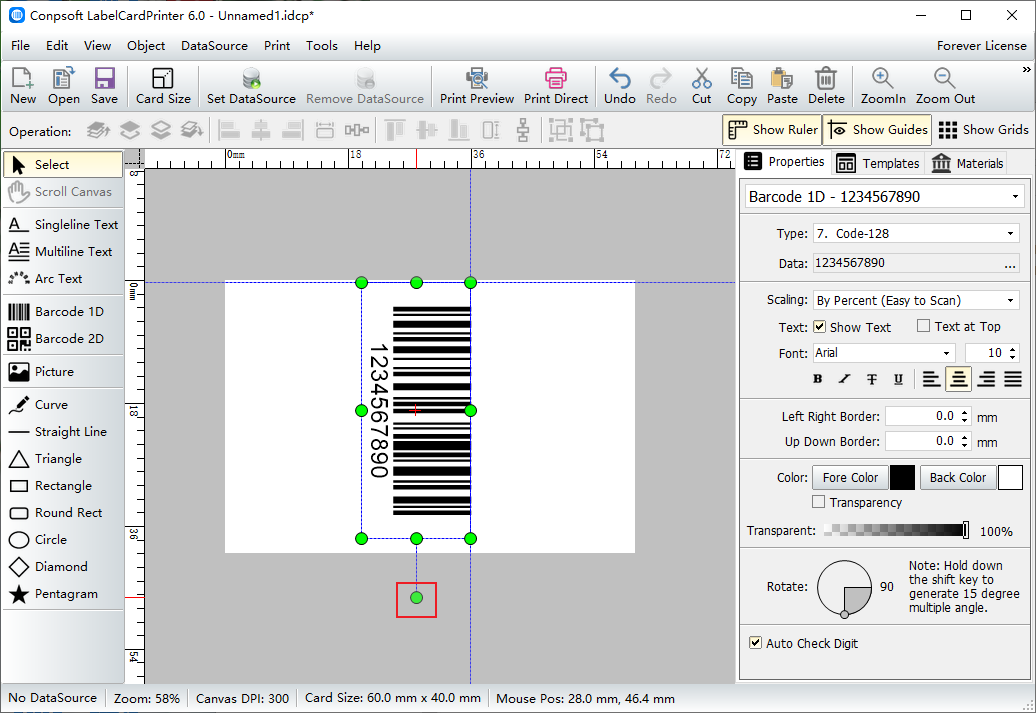

The second method is to rotate the bar code directly. Place the mouse over the green circle on the outer edge of the bar code and a rotating icon appears.

Bar codes are generally horizontal or vertical. Due to the limitation of scanning gun recognition principle, non-right Angle or straight Angle rotation may affect bar code recognition.
