Bar code software how to set jewelry jewelry labels

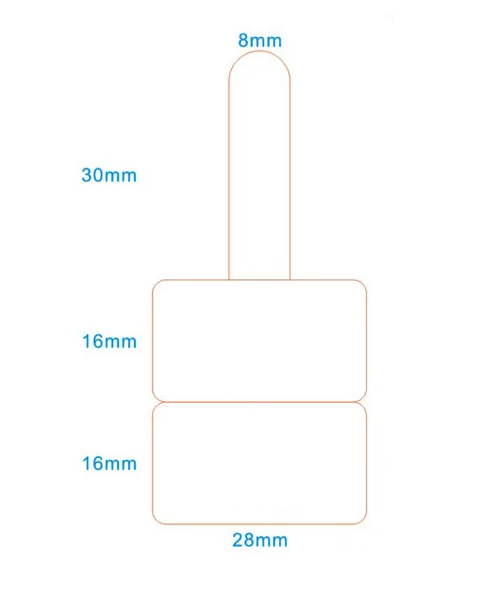

Every commodity, like everyone, has its own "identity", and this "identity" is the label. Most commodity labels have regular shapes, such as rectangles, squares, circles, etc., but there are exceptions, such as jewelry labels. At present, the commonly used jewelry labels in the market are generally double-sided, which can be pasted together and have a slender "tail". As shown in the figure below. Because such label paper is not very regular, so many users do not know how to set in the barcode software. Let's use this example to introduce the setting method.

First, we calculate the width and height of the label from the figure above. The width of the label is 28mm, and the height is 30+16+16=62mm. So in the barcode software to create a new label, width and height set to 28 and 62 can be.

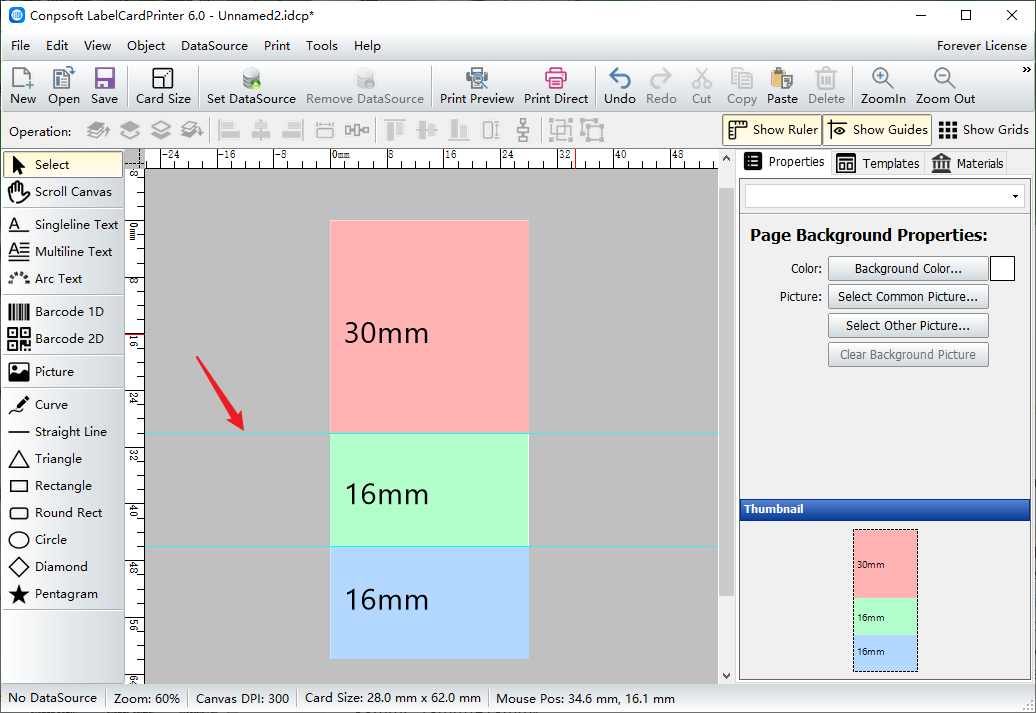

A ruler is used in the software to divide the label into three parts with heights of 30mm, 16mm and 16mm respectively.

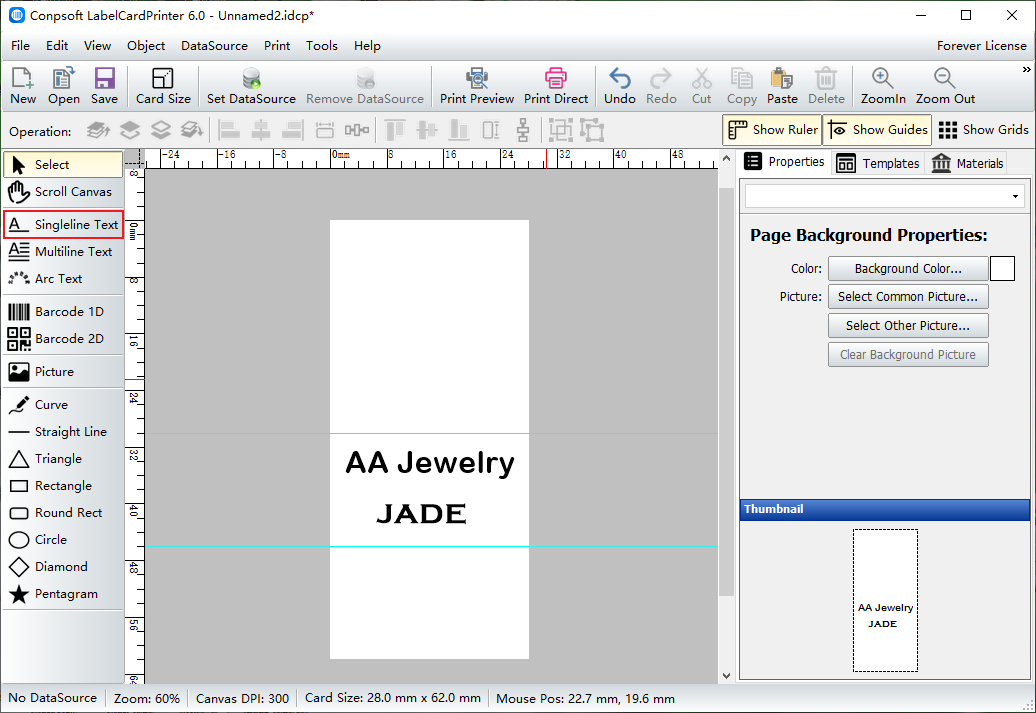

After the tag is set, it is time to create the content. Use the Single Line Type Tool (T) and add the text content as shown in the picture below.

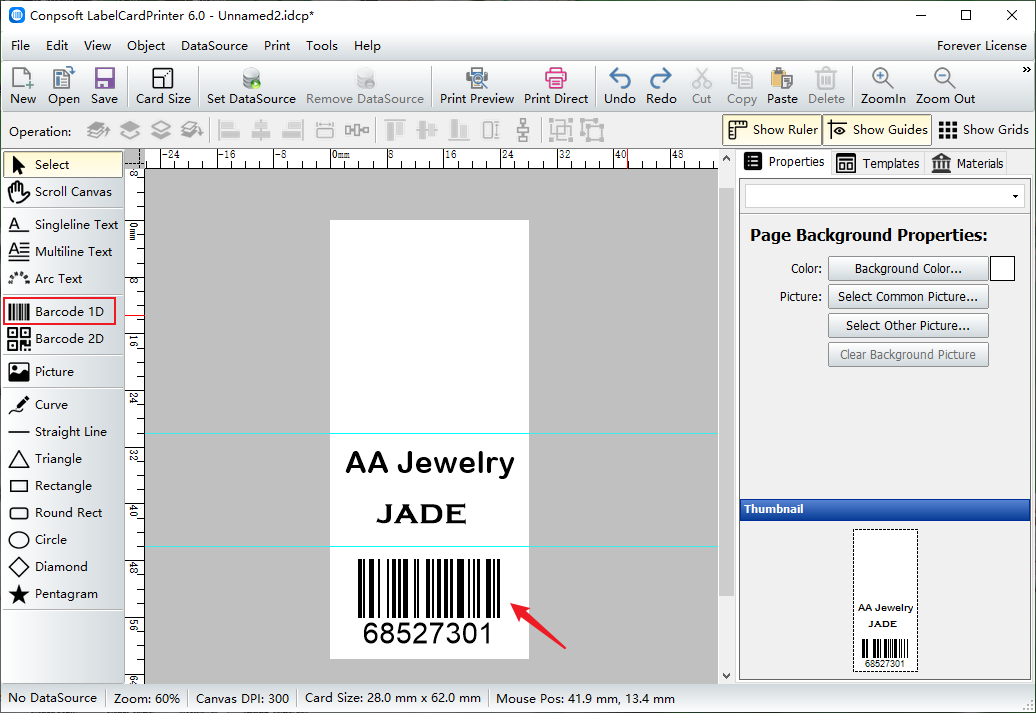

Click "Barcode" button, draw a barcode, and input the barcode data.

The above is the setting method for special label paper. We need to measure the size well, pay attention to the display range of label paper when designing and making software, and use ruler tool when making it.
