Generate Code128-C bar codes in batches using Excel files

2022-10-25 | 840 view

Code128 is a high-density one-dimensional bar code, which can represent all 128 ASCII characters (digits, letters, lowercase, symbols and control characters), so it is called 128 code.

Code128 is a high-density one-dimensional bar code, which can represent all 128 ASCII characters (digits, letters, lowercase, symbols and control characters), so it is called 128 code. Code128 A code, Code128 B code, Code128 C code are subsets of Code128 code, Code128 C code can only represent 100 "two digit" code (00-99), such as: 123456, 90870965. Let's take a look at how to batch generate Code128-C barcodes.

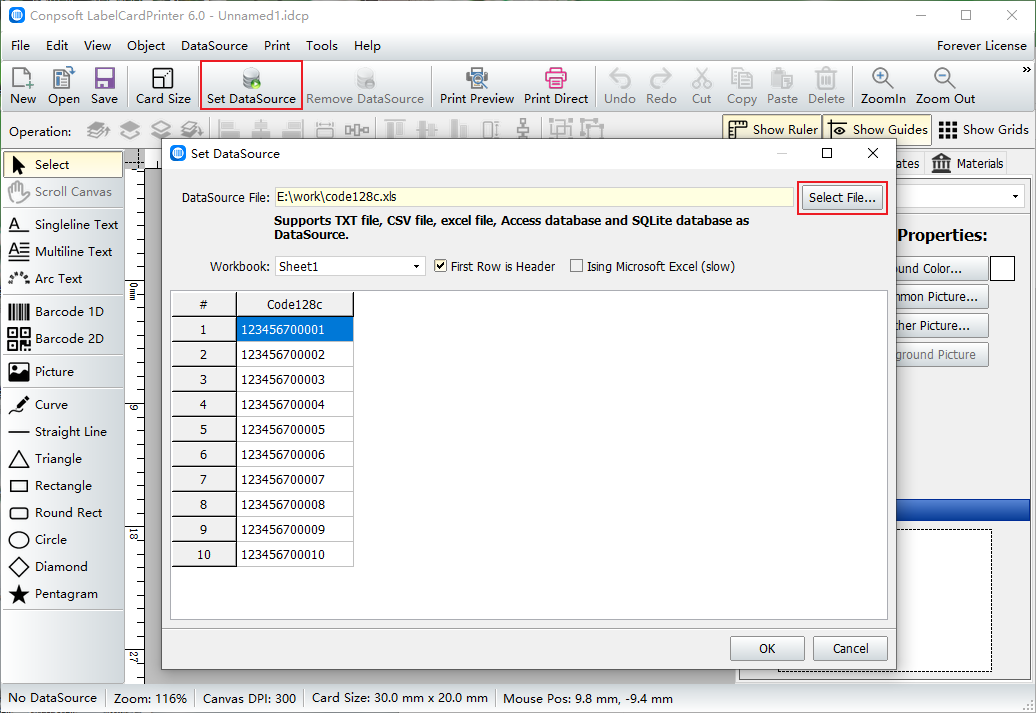

Firstly, open the barcode label software, create a blank label, click the "Set data source" button above the software, and select the Excel form with barcode data saved to import into the software.

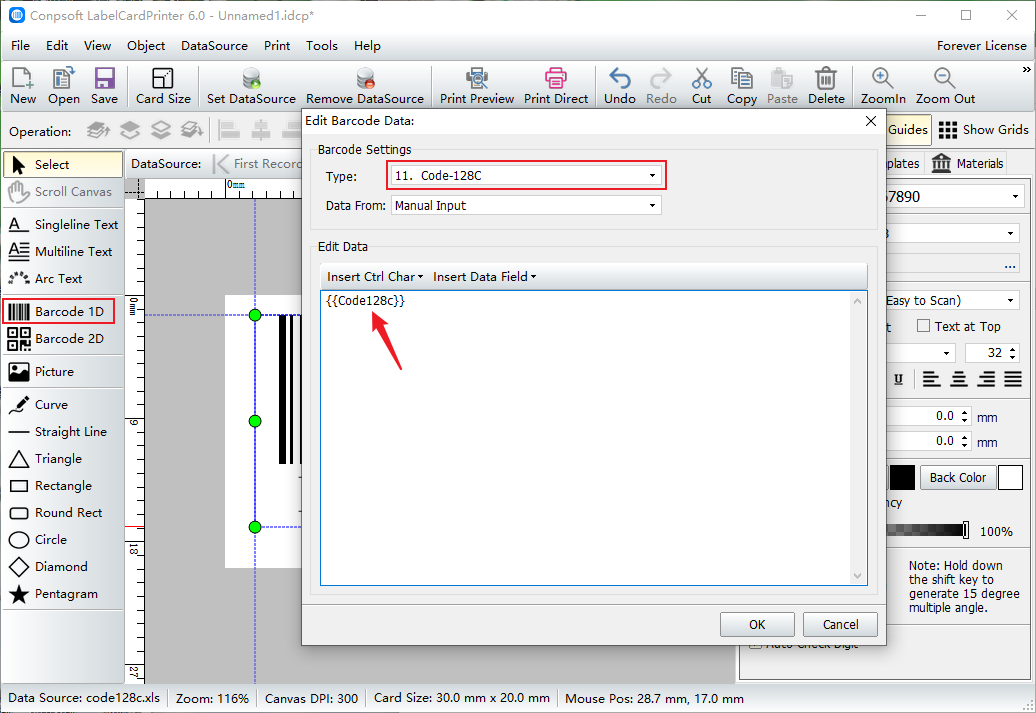

Click the "Barcode" button on the left of the software, and draw a barcode on the canvas. In the popup editing interface, set the type of barcode to Code128-C, click the Insert Data Source field, and select the field "Barcode Data".

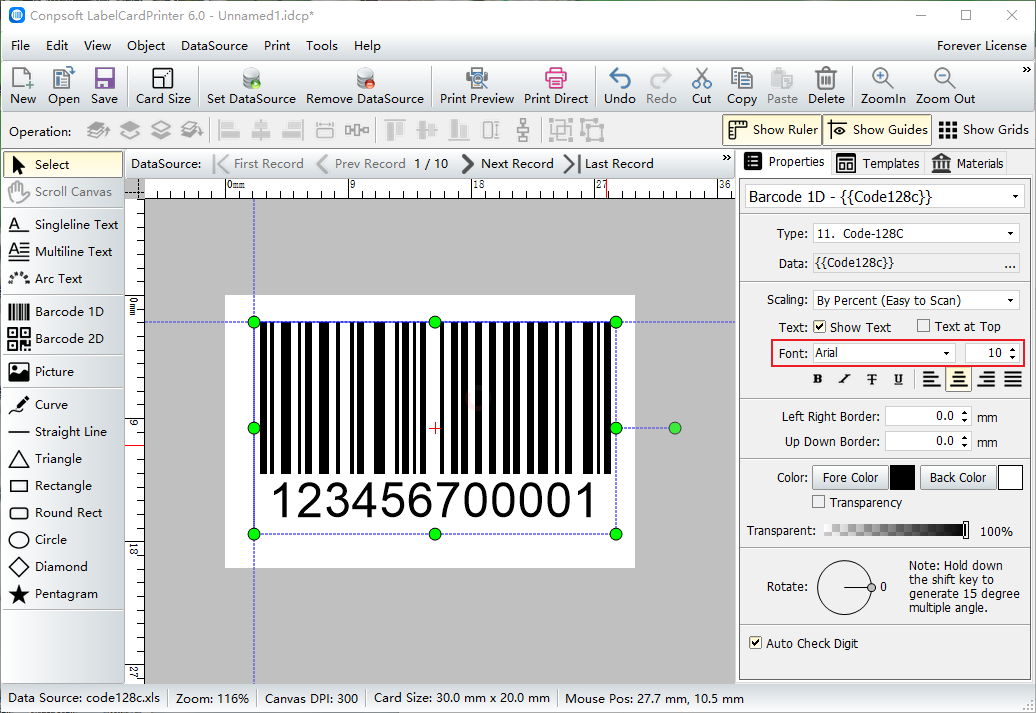

After the barcode is created, you can set the font and size of the text on the right of the software, and choose whether to display the barcode text.

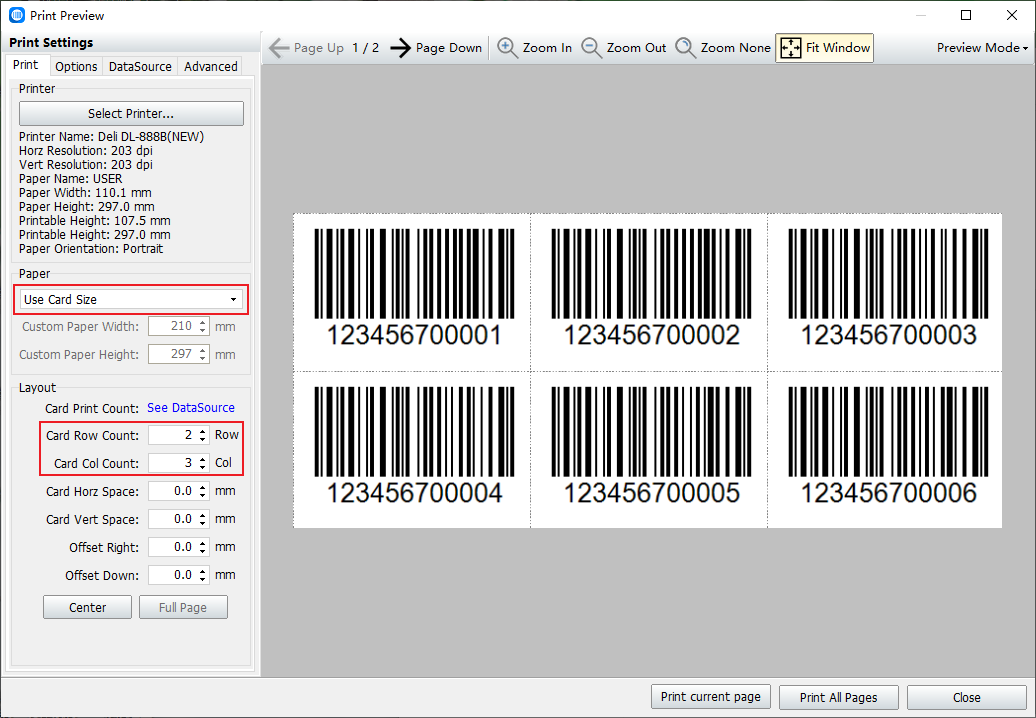

Click Print Preview. On the preview screen, set paper and layout according to actual needs. Click Previous page and next page to view the generation of labels.

The above is the operation method of batch generating Code128-C code by Excel file, of course, you can also directly generate code128-C code by sequence or random generation in barcode software.
