How to set vertical bar codes in Bar Code software

2022-12-08 | 800 view

When we usually make bar code labels, bar codes are generally presented horizontally, but there are also some cases that need to be presented vertically when designing labels.

When we usually make bar code labels, bar codes are generally presented horizontally, but there are also some cases that need to be presented vertically when designing labels. How to make such a vertical bar code? The following describes the specific operation steps.

Open the Magic Barcode label printing software and set the size of the label. Click [Barcode] button to draw a barcode on the label, select the type of barcode in the pop-up interface, and enter the barcode data.

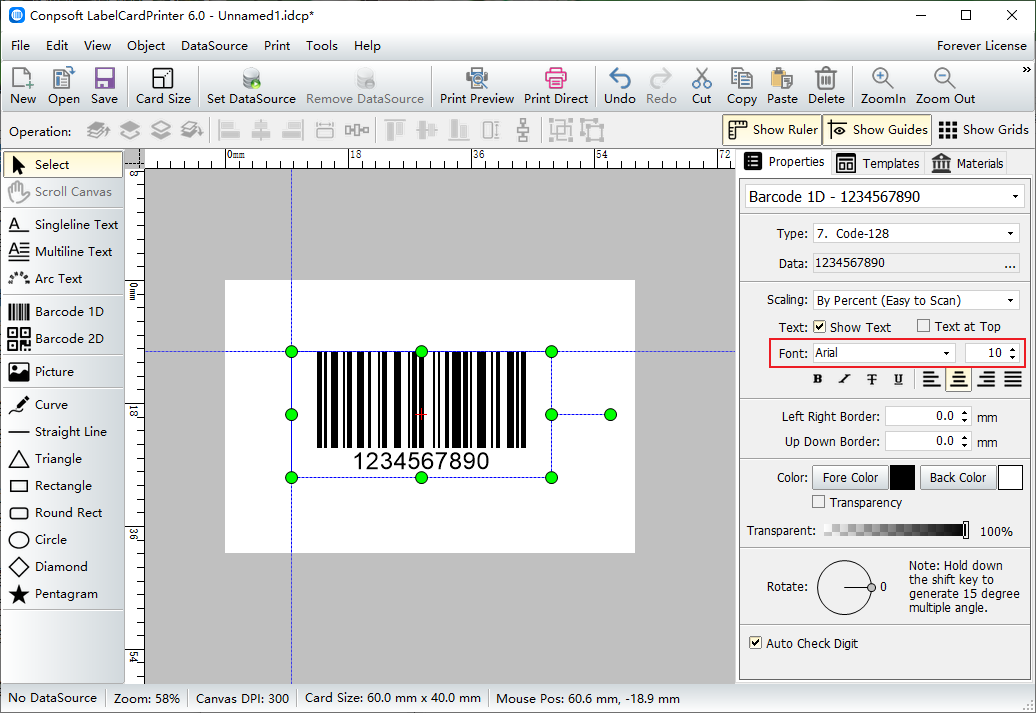

After the bar code is made, set the font and size of the bar code on the right of the software.

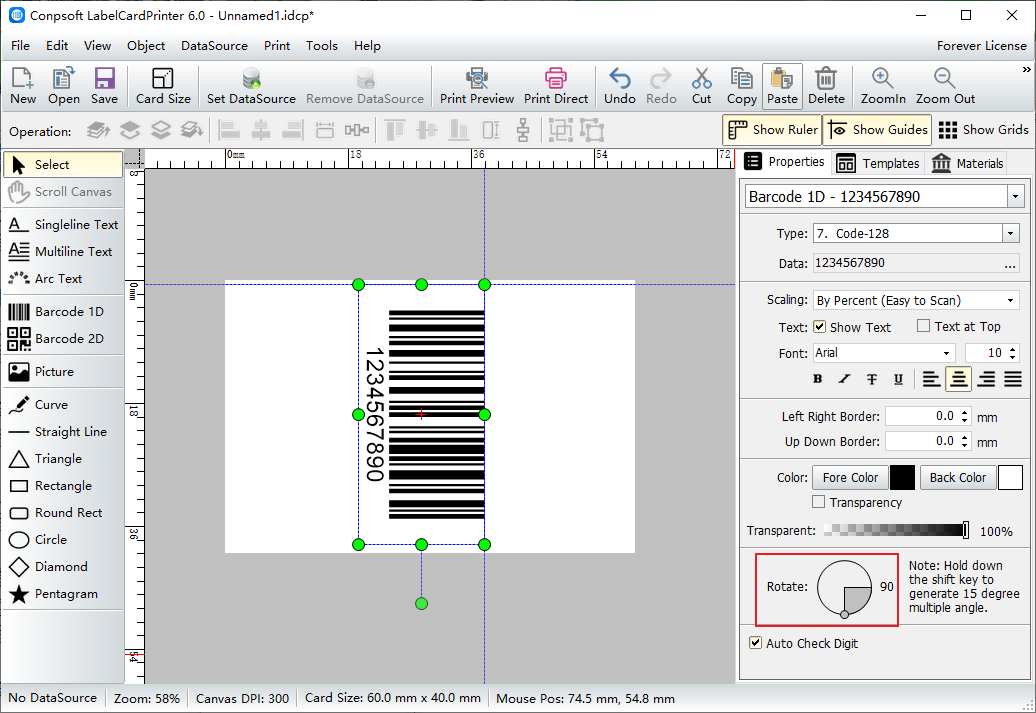

Select the bar code and set the rotation Angle to 90 degrees at the rotation Angle. Hold down the Shift key while dragging to generate a multiple Angle of 15 degrees.

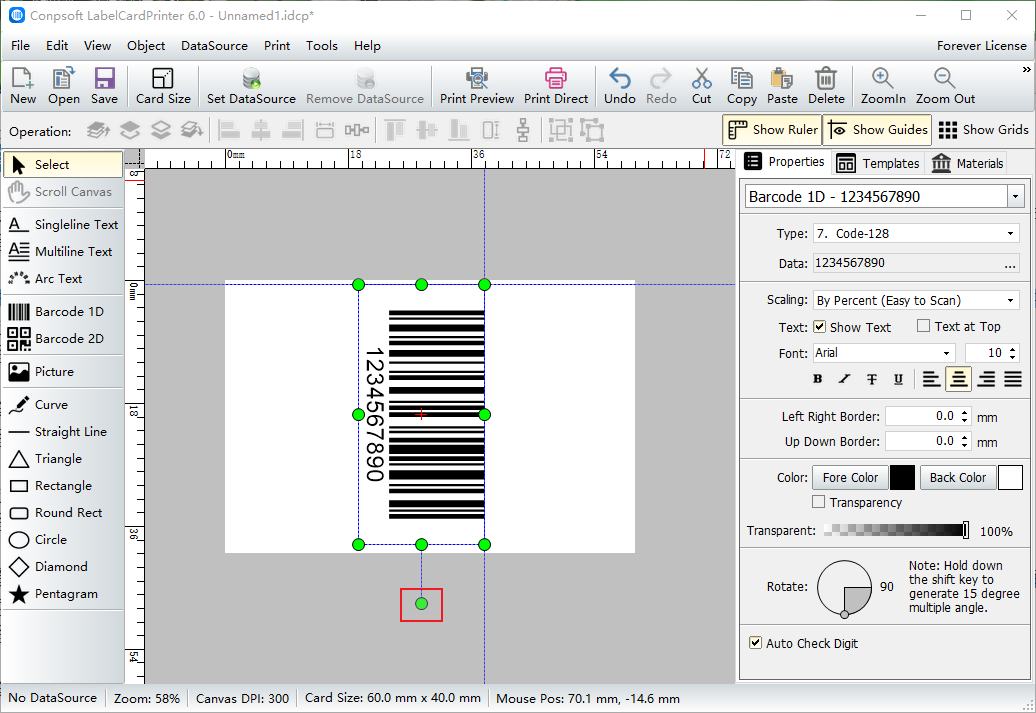

The second method is to rotate the bar code directly. Put the mouse on the green circle on the outer edge of the bar code, and a rotating icon will appear. You can rotate the Angle directly.

Bar codes are generally horizontal or vertical, because of the limitations of the scanning gun recognition principle, non-right or straight Angle rotation may affect the recognition of bar codes.
