How to make the two-dimensional code with code

2023-01-13 | 443 view

Now two-dimensional code is more and more widely used, enterprise production also often use pipeline two-dimensional code for product traceability management,

Now two-dimensional code is more and more widely used, enterprise production also often use pipeline two-dimensional code for product traceability management, the general data is basically 001,002,003...... This type of serial number, of course, can also add some fixed prefixes or suffixes according to the situation of their own enterprises. The following Xiaobian will introduce the specific production method in detail.

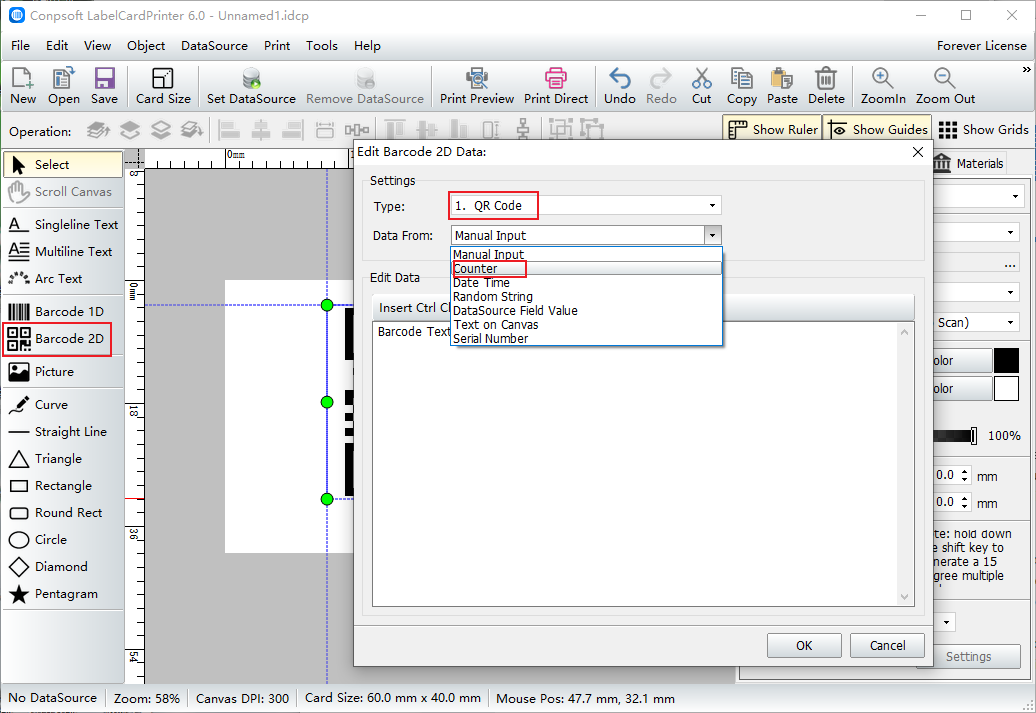

First, create a label in the barcode software and set the size of the label. The size of the label should be consistent with the size of the label paper in the printer. Click the QR code button on the left side of the software, draw a QR code on the label, set the type of QR code in the pop-up interface, and select "counter" as the data source.

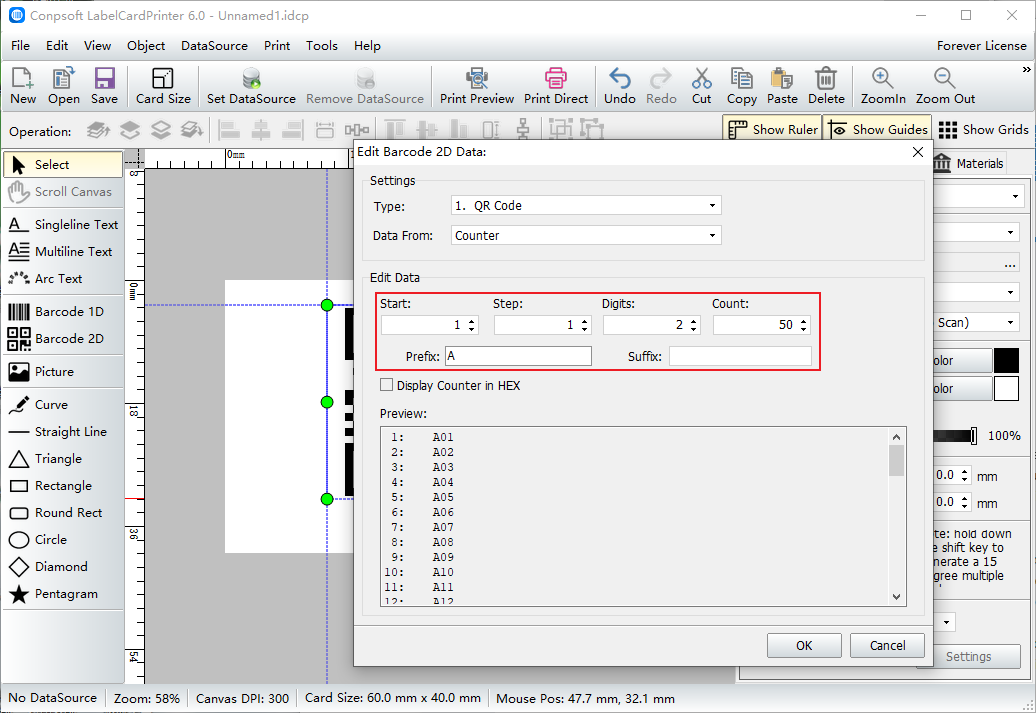

Set the data start to 1, counter step to 1, data bit to 2, data total to 50, input A at the data prefix, these values can be set according to their own needs.

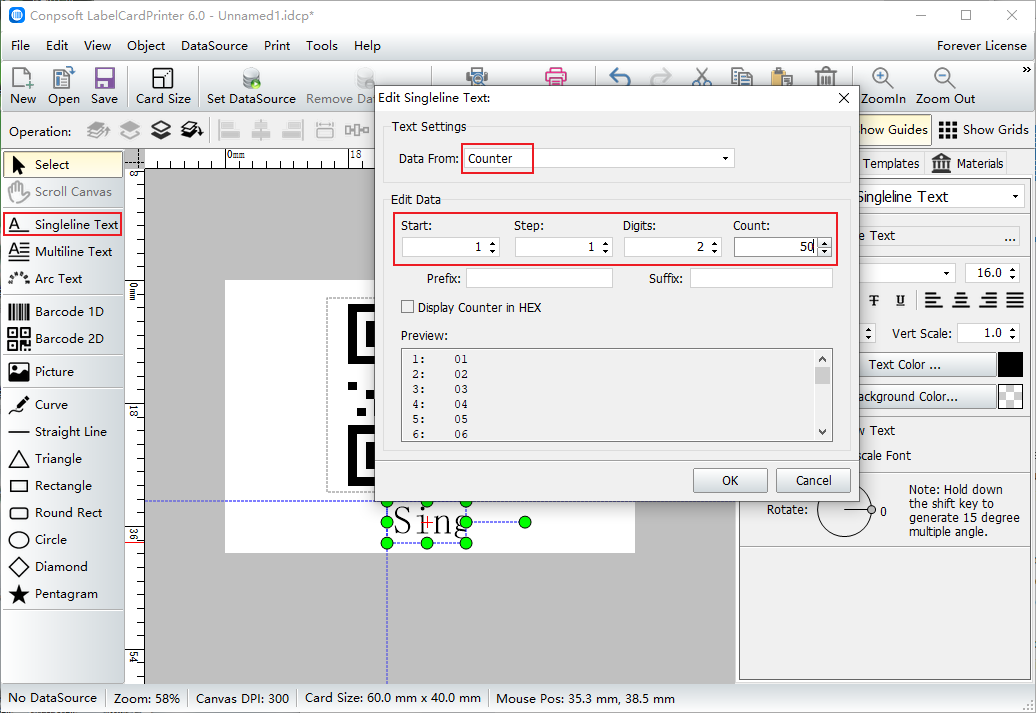

Select [single line] on the left side of the software, drag out a text box, select "counter" as the data source, and set the data start, counter step, number of bits and total amount, etc.

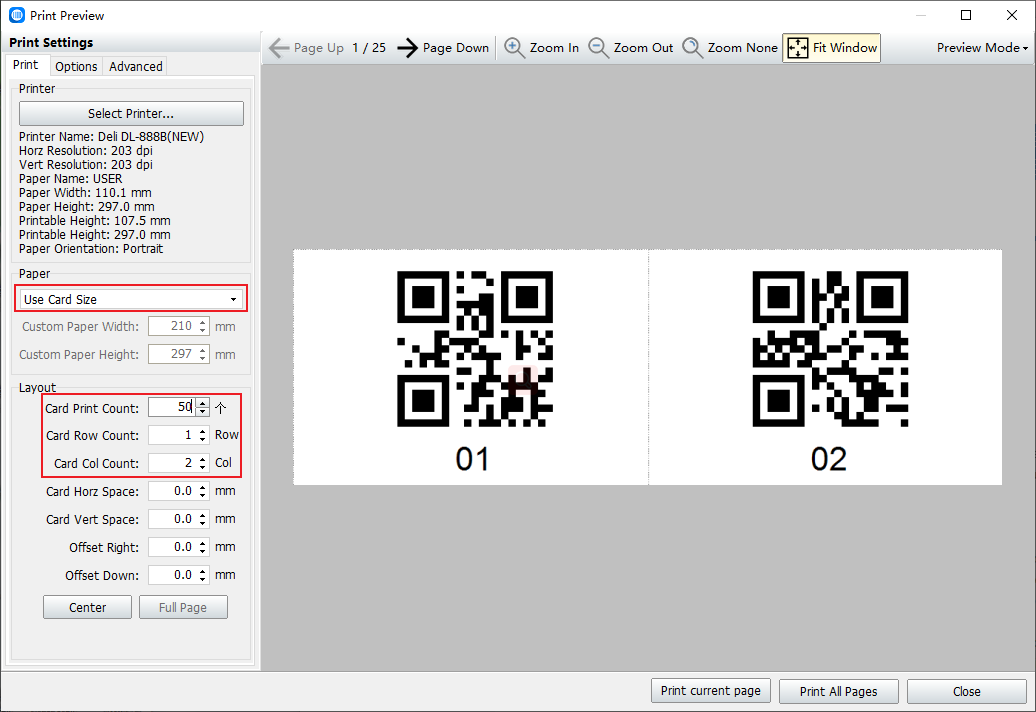

After the two-dimensional code and code are generated, click [Print preview], select the paper and set the number of labels to be printed and the number of lines. Click the previous page and the next page at the top of the interface to view the generation of the two-dimensional code.

To sum up, it is the method of making the two-dimensional code with code in the barcode label software, and it can also be realized by using the database.
