Batch create ITF-14 bar codes in TXT files

ITF-14 barcode is a cross two-five barcode, which can encode 14-digit data with fixed length. It is often used for the printing of box code labels. The first digit is called "package indicator", which is used to indicate the packaging grade. The indicators 1-8 are for quantitative packaging and 9 is for variable packaging. When the BARCODE label software is used to make ITF14, it contains the self-verification function. If 13 bits of data are entered, the software automatically generates the last bit of verification code data. If there is a complete 14 bits of data directly input can be generated bar code. The following xiaobian will demonstrate how to batch generate ITF14 bar codes through TXT files.

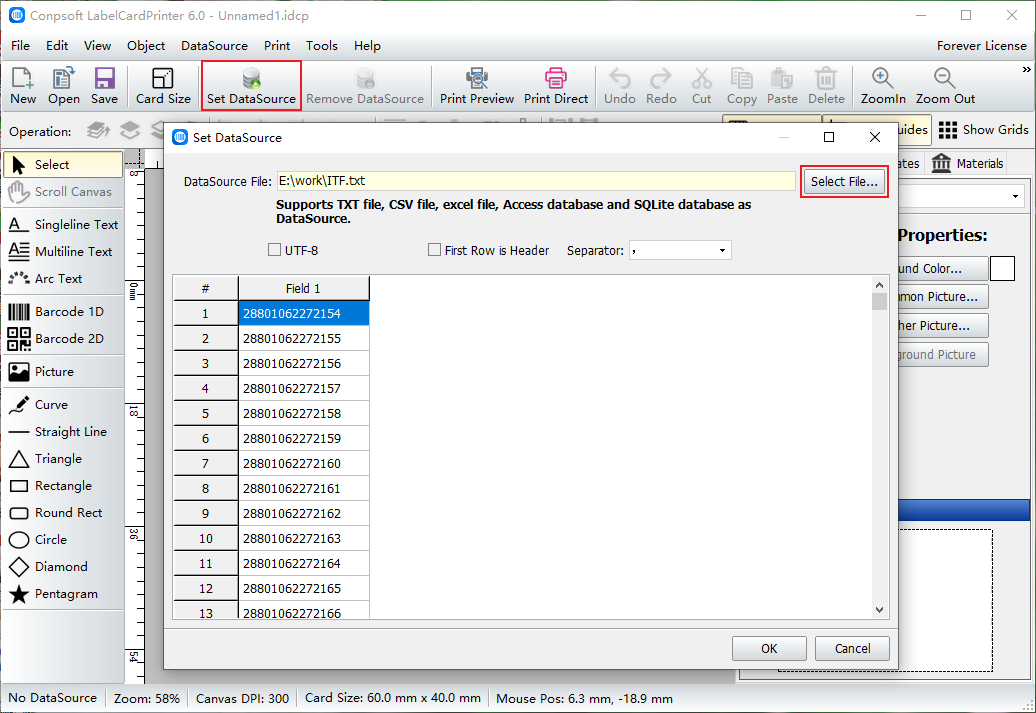

Open the bar code generation software, click New label, set the label size. The saved barcode data is imported into the software through the database Settings. Click "Set data source" above the software -- select the file -- select the TXT file with ITF barcode -- OK.

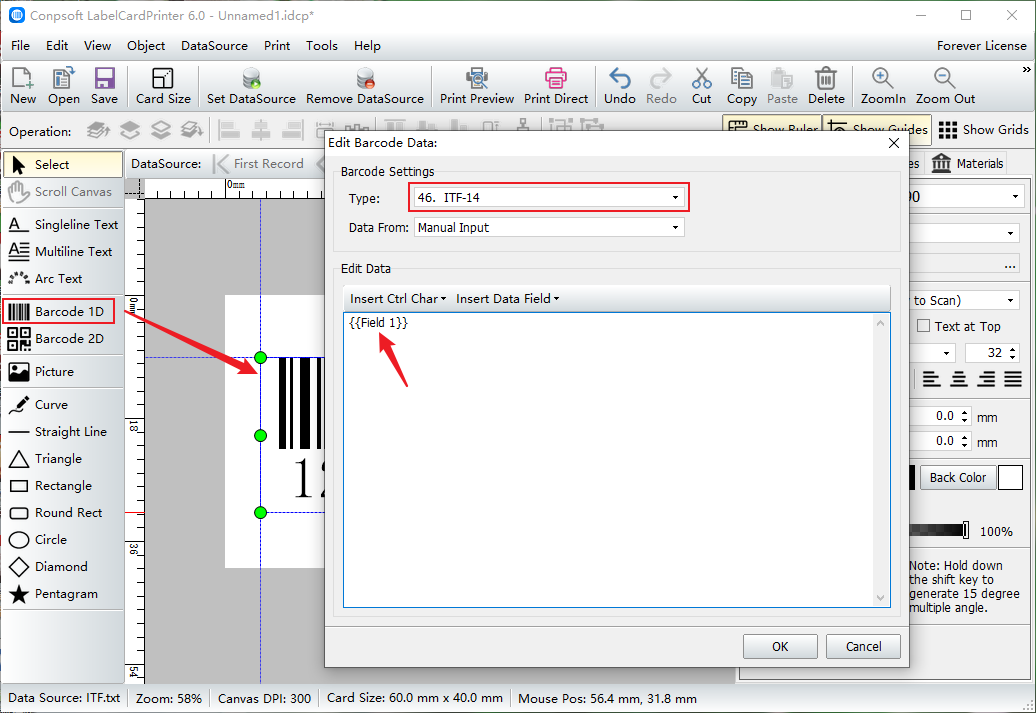

Draw a bar code, click the "Bar Code" button in the left toolbar of the software, add a bar code to the label, select the bar code type as ITF-14 bar code in the pop-up editing interface, click Insert data source field, and select "Field 1".

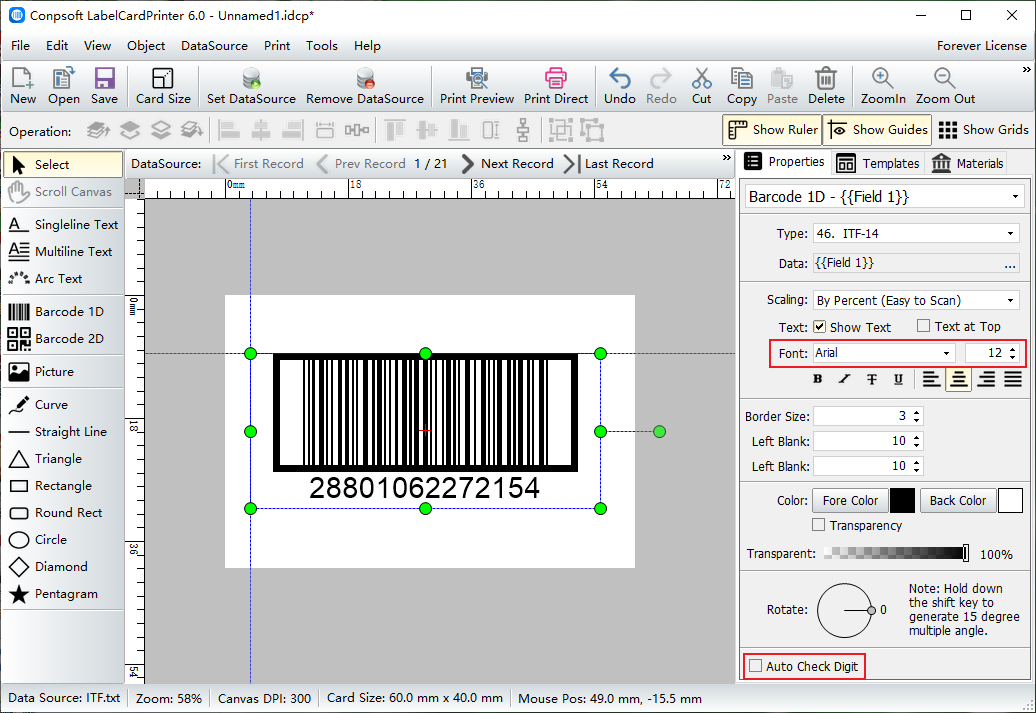

After the barcode is generated, you can set the font and size of the barcode text on the right side of the software. Deselect Automatic Calculation check bit.

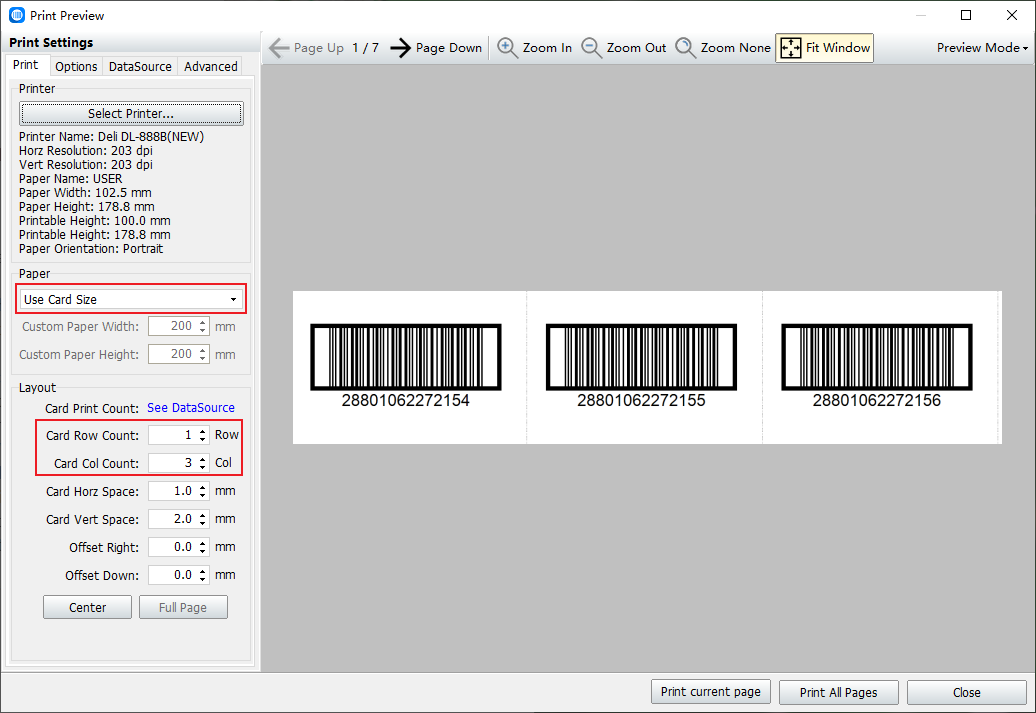

Click Print Preview, select paper, and set the number of rows and columns for the label.

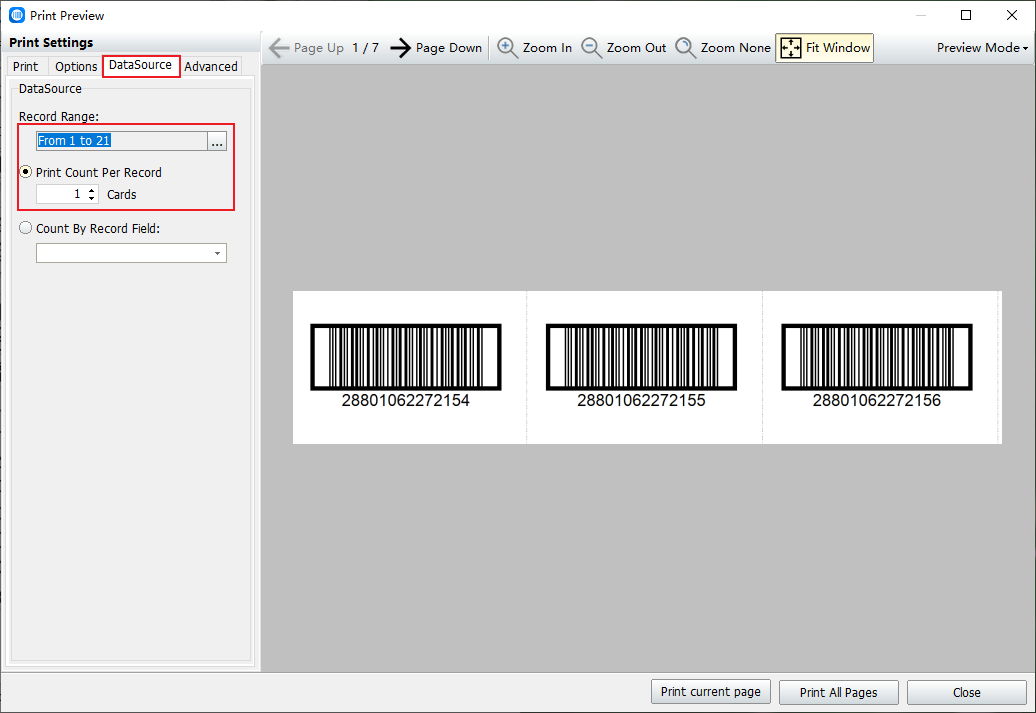

Click on the data source to set the number and range of labels.

The above is the procedure for making ITF-14 bar codes in batches through TXT files. Xiaobian article is just a demonstration, so the data is very little, in real operation, how much database data can generate how many bar codes.
