Bar code local section data variable setting method

When we generate bar codes in batches, the data of bar codes is changed. If the variable bar code is generated through the database, only the database can be imported. There is also a case that only the local section data in the barcode data changes regularly, and the other data does not change. How to achieve this situation, we take data 11200001L1123 as an example, just change the value of the middle 00001 part. Details are given below.

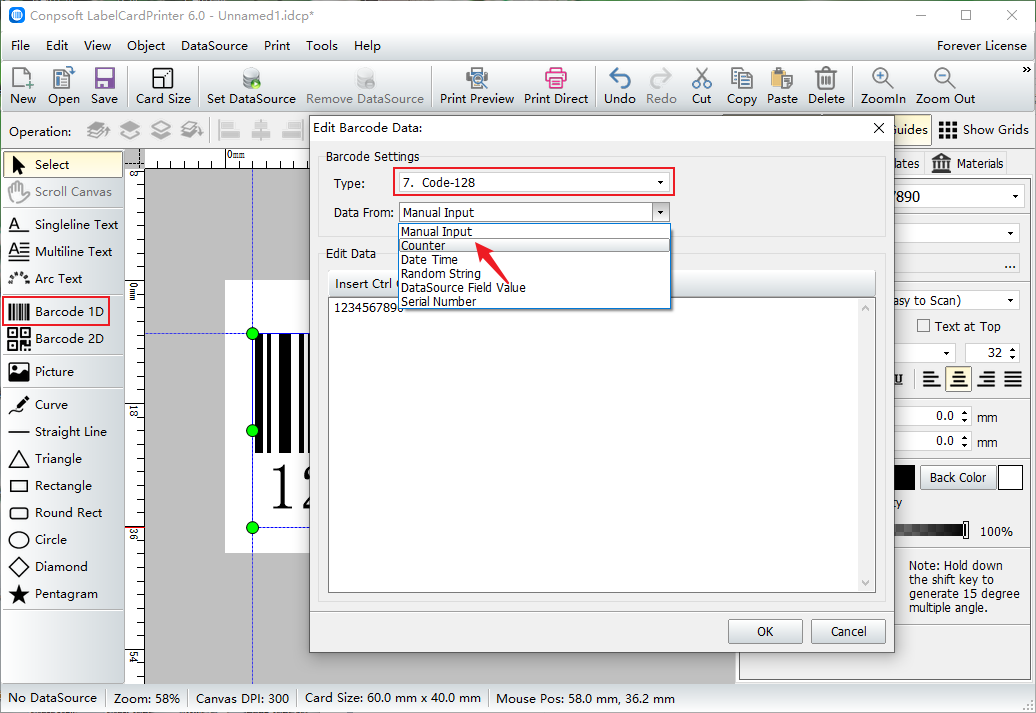

First, we use the barcode tool in the software to draw a barcode, select the barcode type as Code 128, and select the data source generated by the counter.

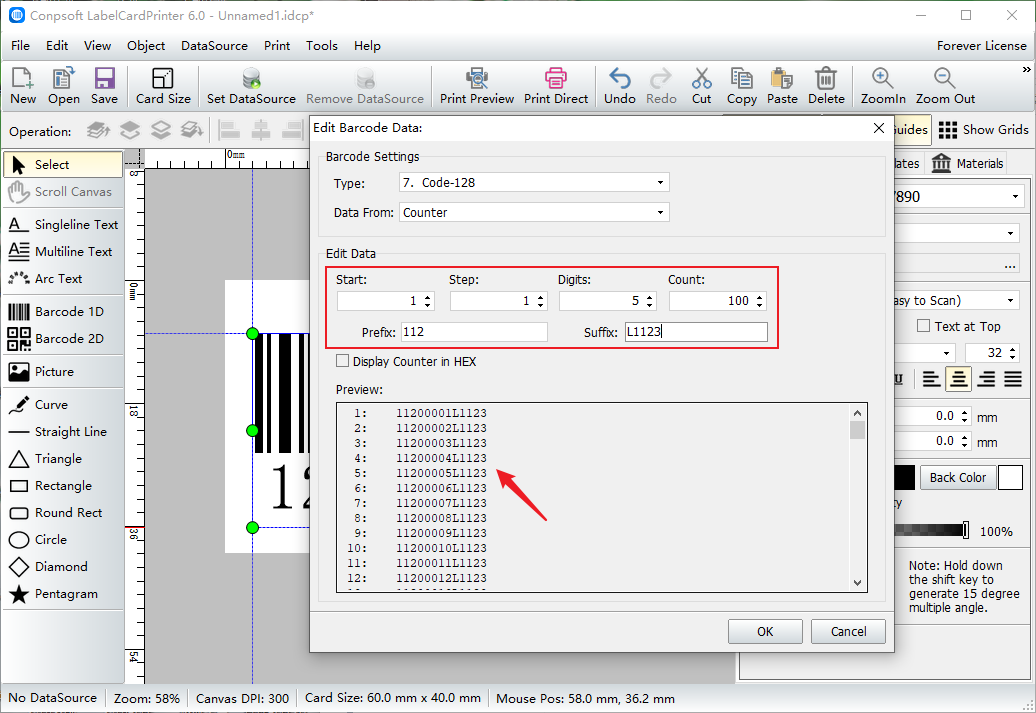

Second, the data start is set to 1, the counter step is set to 1, the number of bits is set to 5, and the data prefix is set to 112, because in the example, this number is unchanged. Similarly, set the data suffix to L1123.

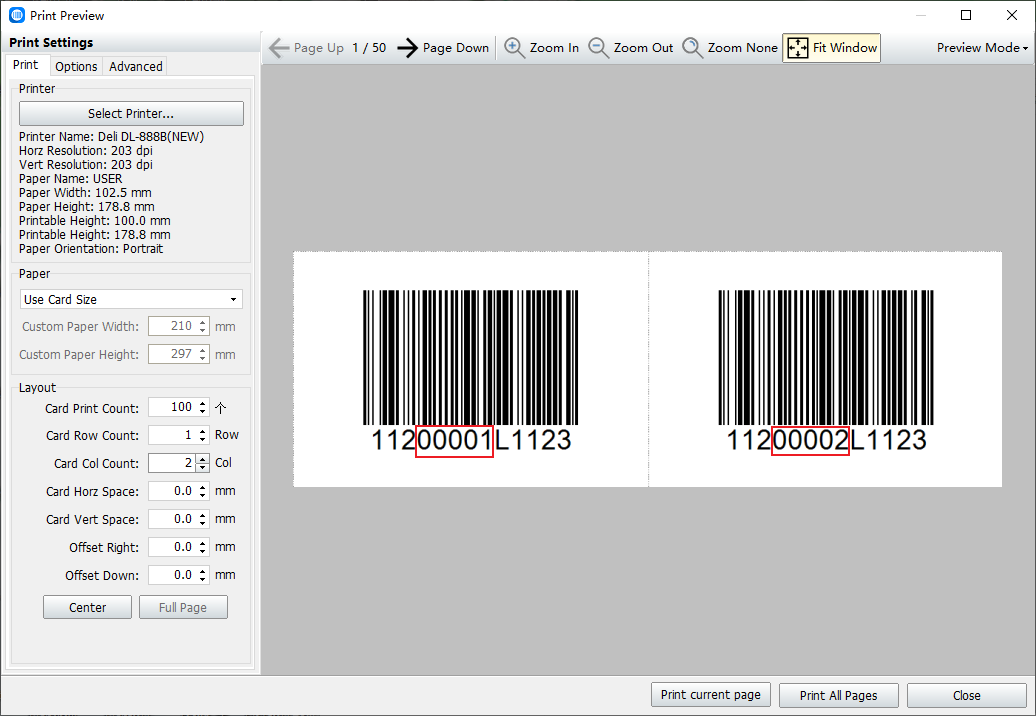

3. Click Print preview. In the preview interface, you can see that the partial data in the generated barcode is changed, while the rest data is unchanged.

The above operation is for the sequence of 00001 to achieve variable Settings, not the overall data set, want to know more about the barcode software information, please continue to pay attention to us.
