Product label shop code in batch production method

The bar code printed on the outer package of the goods we usually buy is the universal code. There is also an internal code, which is used inside the manufacturer, also known as the in-store code. The in-store code is a special application of the commodity bar code, which can only be used in the store or warehouse of the enterprise. Here is a detailed introduction to the method of batch production shop code.

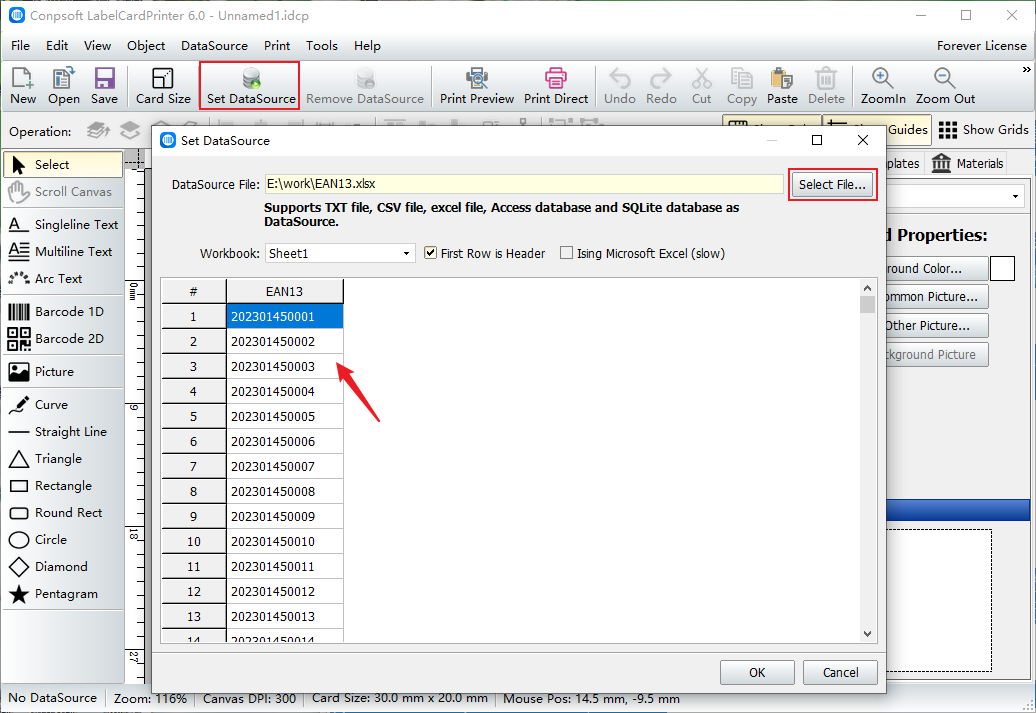

In the barcode generation software, click the "Set data source" button above the software to pop up the database setting interface, and select "Excel data table file" as the data source type. Click [Select File] to import the Excel file with barcode data into the software.

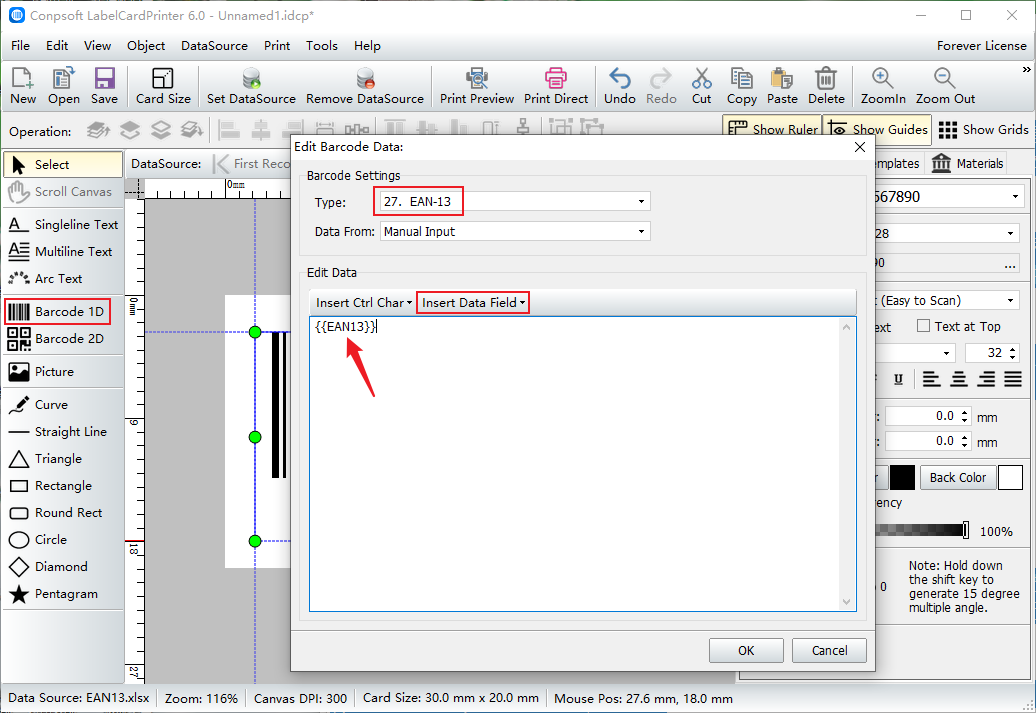

Select the Bar Code tool on the left side of the software and draw a bar code on the label. Select EAN13 as the type of the bar code. Although there is no uniform code system, the in-store code also belongs to commodity bar code, so the commonly used type of in-store code is EAN13 bar code. Click Insert Data Source Field and select Barcode Data.

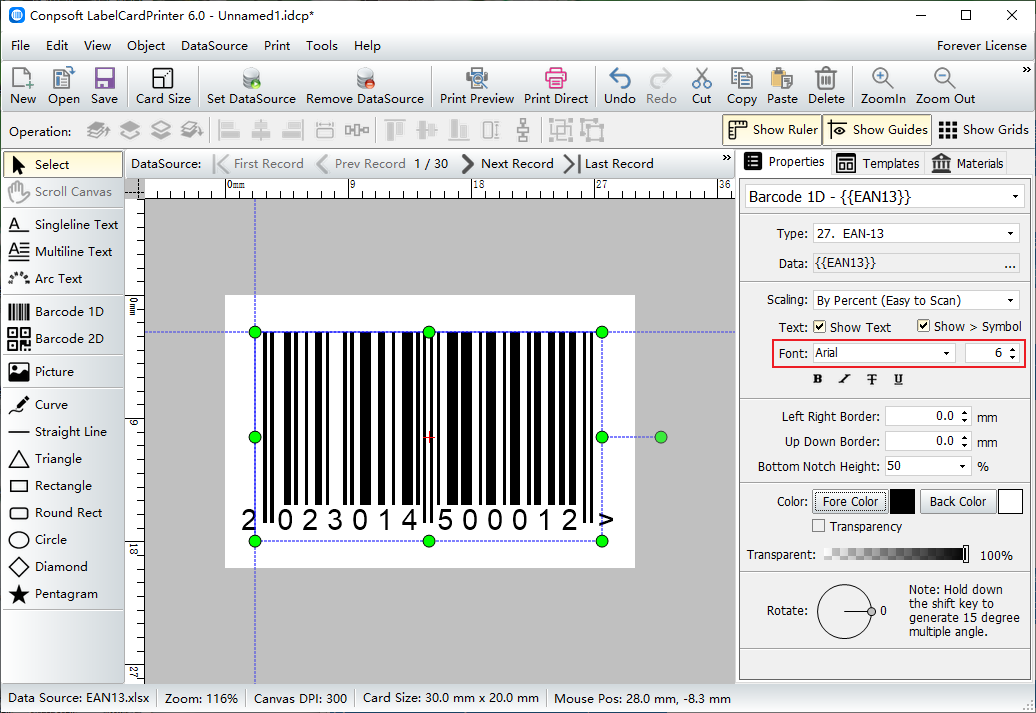

After the barcode is generated, you can set the font, size, and color of the barcode data on the right of the software.

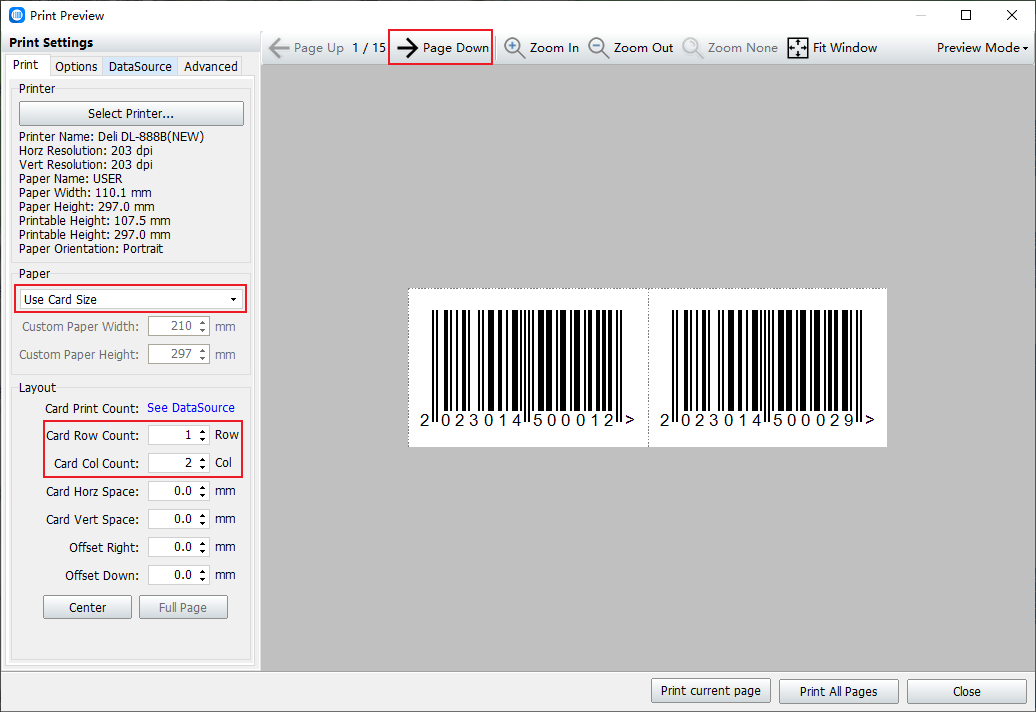

After setting, click "Print Preview" in the toolbar above the software, select paper as required in the preview interface, and set the layout. Click "Next Page" to view the generated bar code. If there is no problem, you can connect the printer for printing.

The above is the commodity label store code batch production method, the generated bar code supports a variety of output, such as PDF documents, pictures, etc., can be selected according to their needs.
